Using Maven Archetype to create a new Module in Openflexo

In this article, you will learn how to get started with using a Maven Archetype to create a new module within openflexo infrastructure, using eclipse IDE.

Configure Maven​

As a preliminary phase, you should checkout openflexo-production project (0.4 version).

This project contains a file called archetype-catalog.xml, located in tools-configuration/src/main/resources/archetype-catalog.xml

Here is the contents of archetype-catalog.xml file

<archetype-catalog xsi:schemaLocation="http://maven.apache.org/plugins/maven-archetype-plugin/archetype-catalog/1.0.0 http://maven.apache.org/xsd/archetype-catalog-1.0.0.xsd"
    xmlns="http://maven.apache.org/plugins/maven-archetype-plugin/archetype-catalog/1.0.0"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
<archetypes>
  <archetype>
    <groupId>org.openflexo.archetypes</groupId>
    <artifactId>technologyadapter-archetype</artifactId>
    <version>1.8.0-SNAPSHOT</version>
    <description>Provides technologyadapter development generator for Openflexo</description>
  </archetype>
  <archetype>
    <groupId>org.openflexo.archetypes</groupId>
    <artifactId>technologyadapter-archetype-simplemodel</artifactId>
    <version>1.8.0-SNAPSHOT</version>
    <description>Provides technologyadapter development generator for Openflexo with no metamodel</description>
  </archetype>
  <archetype>
    <groupId>org.openflexo.archetypes</groupId>
    <artifactId>openflexo-module-archetype</artifactId>
    <version>1.8.0-SNAPSHOT</version>
    <description>Provides module development generator for Openflexo</description>
  </archetype>
</archetypes>
</archetype-catalog>

Copy this file to your .m2/repository

Alternatively your might ask maven to build this catalog file:

Setting-up Maven preferences​

First open preferences in Eclipse, and lookup Maven preferences:

MavenPreferences

Click on Add Local Catalog

AddLocalArchetypeCatalog

Select local catalog file and provide a description. Click on OK.

Create a new project using Archetype​

In Eclipse, perform New > Project. Select Maven and Maven Project. Click Next

CreateProjectWizard1

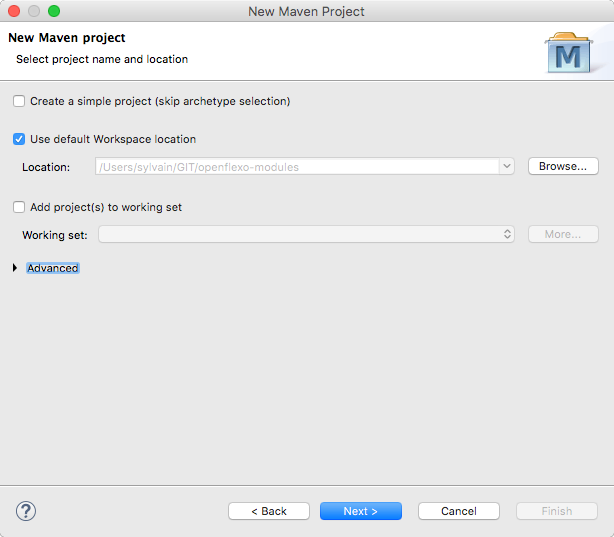

Provide a location for your new module. Openflexo modules are generally build under openflexo-modules. For private project you might use another strategy. Click Next

CreateProjectWizard2

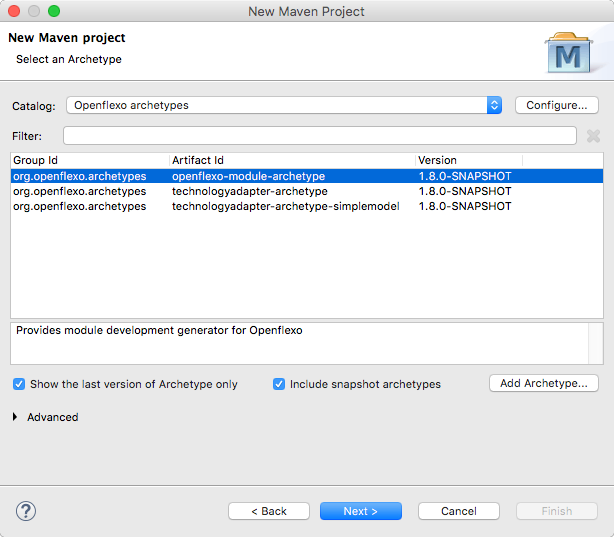

Select desired archetype (here openflexo-module-archetype) (you might be required to include snapshot archetypes when needed) Click Next

CreateProjectWizard3

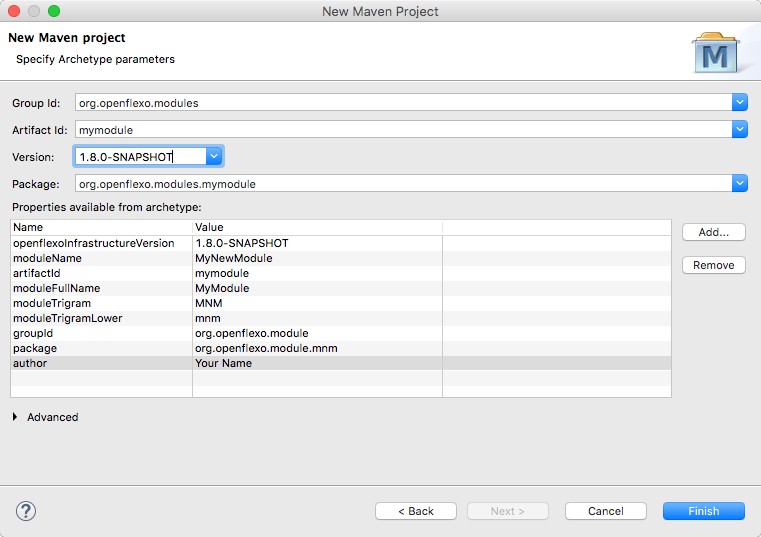

Finally set all configuration data for new project, then click on finish.

CreateProjectWizard4

Your new project should be created at desired location.
