Language tour

FML in ten minutes read one model. This page looks at what surrounds a model and at the rules the language follows to give a name its meaning: where the file lives, what it may declare before the model, how it reaches other models, which types it can use, and how a name is resolved inside a behaviour.

Files and addresses

An FML resource is a directory named after the model, with the extension .fml, that holds a file with the same name: the model People is stored in People.fml/People.fml. A file is a compilation unit, and holds exactly one top-level model.

A model can contain other models. A contained model is stored inside the directory of its container, and its address is computed from the container's: the model Catalog contained in Library is stored in Library.fml/Catalog.fml/Catalog.fml and has the address http://openflexo.org/test/TestResourceCenter/Library.fml/Catalog.fml when Library has the address http://openflexo.org/test/TestResourceCenter/Library.fml. The examples of this guide give the address of their top-level model with @URI(…).

What comes before the model

A compilation unit is made of four parts, always in this order:

1. namespace declarations, namespace "…" as NS;
2. use declarations, use <class> as ID;
3. imports, import …;
4. the model, model Name { … }

Each of the first three may be absent or repeated. A use declaration gives a short identifier to the model slot type of a technology adapter, as in use org.openflexo.foundation.fml.rt.FMLRTModelSlot as FMLRT;; the identifier then prefixes what that adapter brings to the model.

Namespaces

A namespace gives a short name to the beginning of an address, so that the address of another model is not repeated in full:

namespace "http://openflexo.org/test/TestResourceCenter/" as TRC;

import [TRC+"People.fml"];

The alias is used in the import declaration, where it is concatenated with + to the end of the address. The rest of this page uses it.

Imports

An import puts something in reach of the unit. There are two forms you will use everywhere:

Import	Meaning
import java.util.List;	a Java type
import ["http://…/People.fml"];	the concepts of the FML model at that address

The grammar also accepts named forms (import java.util.List as name; and import <Type> name from [uri];).

Here is a model People, with one concept:

@URI("http://openflexo.org/test/TestResourceCenter/People.fml")
public model People {

	public Person newPerson(String name) {
		return new Person(parameters.name);
	}

	public concept Person {

		String name;

		create(String name) {
			name = parameters.name;
		}
	}
}

and a model Reception, which uses Person as the type of one of its properties:

namespace "http://openflexo.org/test/TestResourceCenter/" as TRC;

import [TRC+"People.fml"];

@URI("http://openflexo.org/test/TestResourceCenter/Reception.fml")
public model Reception {

	Person guest;

	public String guestName() {
		return guest.name;
	}
}

The property guest has the type Person, so a path such as guest.name can go through it. Here is what a script observes:

directory = new People() with (name="directory");
ann = directory.newPerson("Ann");

desk = new Reception() with (name="desk");
desk.guest = ann;
assert desk.guestName() == "Ann";

A missing import gives null

Remove the import line from Reception, and keep everything else: the model still loads and the script runs to the end, with no error. But Person is no longer a type the unit knows, so the path guest.name gives nothing:

oldDesk = new ReceptionWithoutImport() with (name="oldDesk");
oldDesk.guest = ann;
assert oldDesk.guestName() == null;

When a path that should give a value gives null, check that the unit imports the model that declares the concepts on the path.

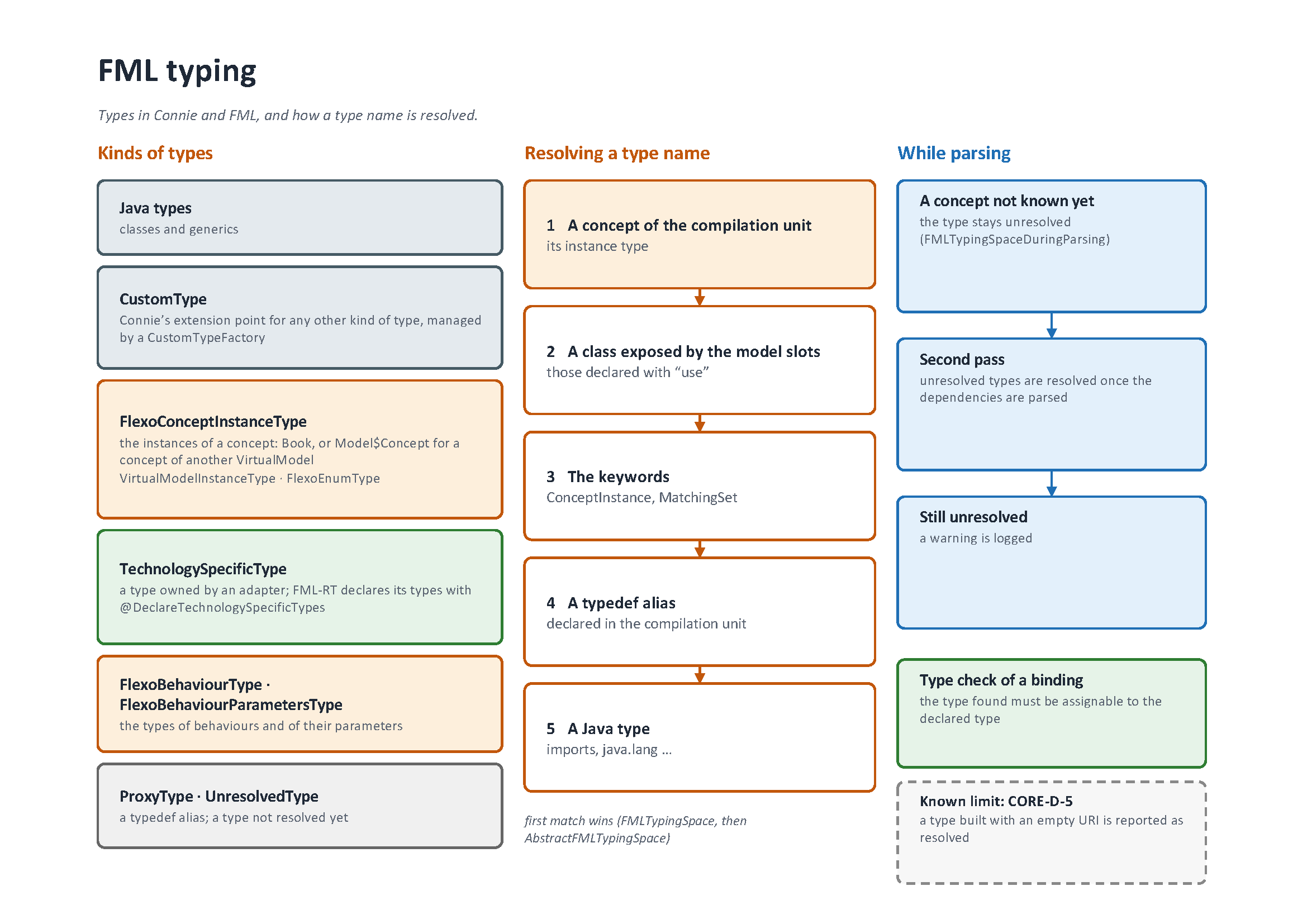

The typing space

The types a unit can name form its typing space. It is made of:

• the primitive types (int, boolean, float…), and String;
• the Java types, imported with import, generic ones included (List<Task>);
• the concepts of the unit itself, nested ones included: they are named by their simple name from anywhere in the unit (for example, in the platform's test model Library, a concept declared at the model level has a property typed Book, a concept nested in Shelf);
• the concepts of the models the unit imports;
• the types brought by the technology adapters the unit uses: a spreadsheet cell, an XML element, an EMF class…

The last item is what lets a path go through an external resource: guest.name above and a path into a spreadsheet are resolved by the same rules, each step being looked up in the type of the previous one.

How a name is resolved

Inside a behaviour, a bare name such as name is looked up outward: first among the local variables, then the properties of the concept, then the properties of the model that contains it. Three qualified forms reach a specific scope. The model below has a label in the model and another in its concept, so it exercises each rule:

public model NameLookup {

	String owner;
	String label;

	create() {
		owner = "Ann";
		label = "of the model";
	}

	public Item addItem(String name) {
		return new Item(parameters.name);
	}

	public concept Item {

		String name;
		String label;

		create(String name) {
			name = parameters.name;
			label = "of the item";
		}

		// …the behaviours of the table below
	}
}

In a behaviour of Item, with an item named Pen	Gives
return name;	"Pen", the property of the concept
return this.name;	"Pen", the same property, explicitly
return owner;	"Ann", the property of the model that contains the item
return container.label;	"of the model", through the container
return label;	"of the item": the property of the concept wins over that of the model
String name = "local"; return name;	"local": a local variable hides the property
String name = "local"; return name + "/" + this.name;	"local/Pen": this still reaches the property
parameter(String name): return parameters.name + "/" + this.name;	"Arg/Pen" when called with "Arg"
bareParameter(String other): return other;	null: a parameter is not read by its bare name
return twin();, where twin() is another behaviour of Item	null: a behaviour is called on this, as this.twin(), which gives "twin"

The last two lines are the ones to remember: a parameter must be read as parameters.other, and a behaviour of the same instance called on this. A bare parameter name, or a bare call, is not an error: it gives null.

What you have seen

A file holds one model, preceded by namespaces, use declarations and imports. Imports are what puts other models in the typing space, and a missing one gives null with no error. Inside a behaviour, names are looked up from the innermost scope outward, and parameters are read through parameters.

The models and scripts on this page are tests of the platform, in the openflexo-core repository.
